home » product » Heaters & Coolers » Heaters » FSTS MS TYPE Temperature Sensor

Heaters & Coolers » Heaters

•Suitable for the temperature sensing in refrigerators, freezers, communication machine rooms, and indoor environment
•Can be attached on the surface made of PE, PP, ABS, PET and various metals
•Can be attached repeatedly
•Passed MSDS certification
•Superconductive, fast, stable and accurate

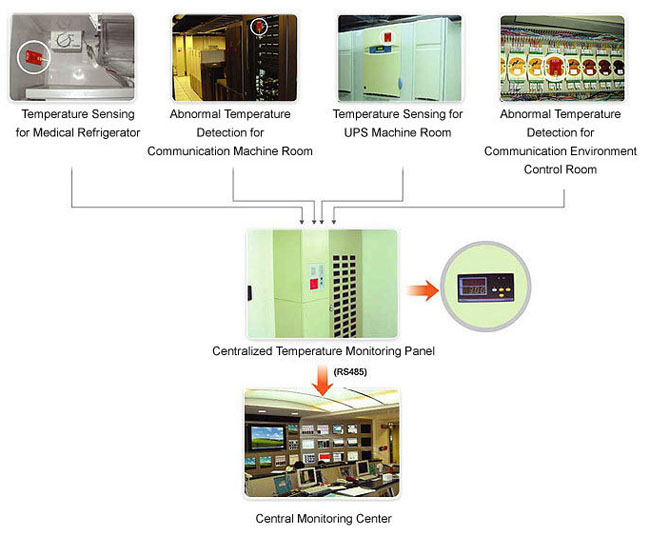

•Application Example: Refrigerator (Freezer) for Medical Products、Communication Machine Room、Central Control Room、Communication Environment Control Room、Indoor Temperature Sensing for Fire Alarm

Price Table：

Quantity:

Specification

Type	Specifications	Note
Dimensions	30X40 (mm)	Can be customized for special requirements
Temperature Sensing Body	PT100Ω K.J. Thermister	Can be customized for special requirements
Response Speed	200°C / 2S
Thermal Conductivity	1.5W / mK	ASTM D547D
Temperature Sensing Range	-40~250°C
Accuracy	PT class A or B ‧ 3850ppm / °C ‧ ±4ppm / °C ‧ T / C0.5	DIN IEC751
UL Certification (PAD)	UL 94 HB / UL746C	E54153 / E65361
Corrosion Resistance	Acid, Base, etc	Air dry 20 seconds after spraying
Water Proof Rating	IP68	CNS14165
Toxicity Test	10°C for MSDS test

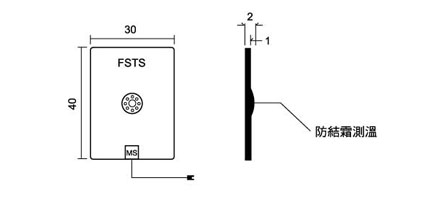

Dimension

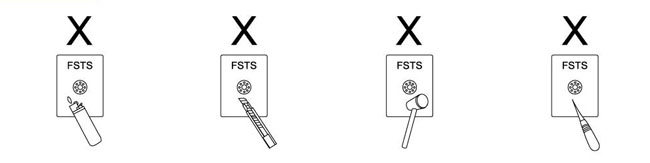

Precautions

After peeling off from attachment, it is necessary to stick a new backside sticker before another attachment (a spare backside sticker is supplied with the product).

The product is supplied with a one-year warranty from delivery date (excluding force majeure).

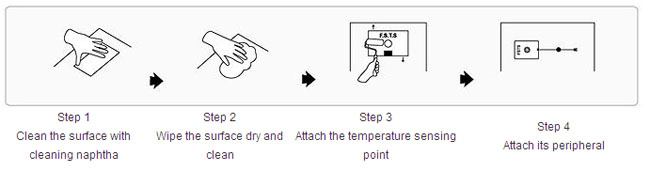

Attachment Technique

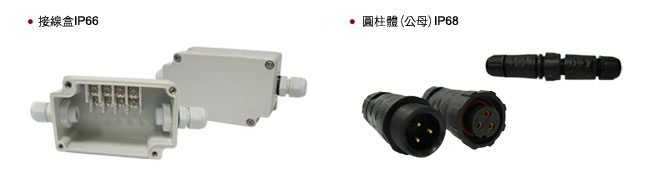

Connector

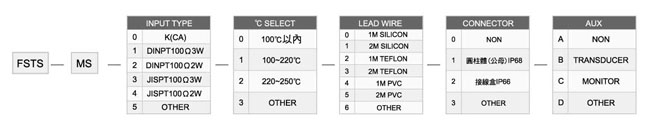

Order

Example
