ISC 2-Channel Isolated Universal Signal Converter/Conditioner/Isolator

Welcome to Accuthermo Technology Corp.
A Total Thermal Solution Provider

home » product » Sensors & Transmitters » Transmitters » ISC 2-Channel Isolated Universal Signal Converter/Conditioner/Isolator

Sensors & Transmitters » Transmitters

Product No. : ISC

•The unique Math function.
PV1,PV2 is the measuring value of Channel 1 and Channel 2 separately. A,B,C is a constant set by user.
•The unique High/Low comparison output.
The output 1 can scale to PV1 or PV2 whichever is higher/lower than the other.
•Programmable for various input signals and measuring range.
•Configurable without Power Connected.
•Full 3-way isolation for 1500 Vrms.
•DIN rail mount.
•Dual channel Input.
Resistance thermometer (Pt100)
Thermocouple (J,K,T,E,B,R,S,N,C)
Voltage/Current transmitter (mV/V/mA)
•Dual 0/4 to 20 mA or 0~10V analogue output (ISC-D).
•RS485 communication interface with Modbus RTU protocol (ISC-C).
•Fault signal on sensor break presettable.

Part Number Builder

Price Table：

Qty.1~10: $100

Quantity:

Part Number

The unit will come standard with PT100, -200~600°C, you can change the input Type/Rang using the free software "

" with the configuration cable URC-1020, or you can contact us for non-standard Input/Rang setting.

(1) Model No.	(2) Input Signal/ Maximum Range	(3) Output 1	(4) Output 2	(5) URC-1020 Interface Cable
ISC	J: -50 to 1000 °C (-58 to 1832°F) K: -50 to 1370 °C (-58 to 2498°F) T: -270 to 400 °C (-454 to 752°F) E: -50 to 700°C (-58 to 1292°F) B: 0 to 1750 °C (32 to 3182°F) R: -50 to 1750 °C (-58 to 3182°F) S: -50 to 1750 °C (-58 to 3182°F) N: -50 to 1300 °C (-58 to 2372°F) C: -50 to 1800 °C (-58 to 3272°F) D: Pt100: -200 to 600°C (-328 to 1112°F) L: mV: -60mVto 60mV V: Voltage: -10 to 10Vdc M: Current: 0 to 24mAdc	M: 4~20mA V: 0~10Vdc	M: 4~20mA V: 0~10Vdc C: RS-485	N: No Y: Yes

The

Din Rail converter is user configurable using our

software on your PC/notebook or our dedicated handheld programmer. The easy to use

software is available free from your supplier or can be downloaded from our web site and should be used in conjunction with the URC-1020 USB cable which incorporates an interface converter necessary for communications.The ISC converter can be configured without any loop or power connected making it easy to configure in the workshop before installation.

The unit will come standard with PT100, -200~600°C, you can change the input Type/Rang using the free software "

" with the configuration cable URC-1020, or you can contact us for non-standard Input/Rang setting.

Specification

Input	Thermocouple (T/C) : industry standard thermocouple types J, K, T, E, B, R, S, N, C (ITS-90).
	Pt100: Excitation 180uA. 2 or 3 wire connection (ITS-90 α =0.00385).
	Voltage: -60mVdc to 60mVdc or –10Vdc to 10Vdc.
	Current : 0-24mAdc
Accuracy	Refer to Table 1 Input Signal
A/D Resolution	16 bits
Input Sampling Rate	<200ms
Power Supply	DC 24V
Output	Current Output: 0/4~20mA( Resistive load 600Ω max.)
Output	Continuous Voltage Output: 0~50mV; 0~10V…( Resistive load 600Ω min.)
Output Resolution	0.6 μ A(15 bits)
Output Response Time	<200ms
Common Mode Rejection Ratio(CMRR)	>80dB
Electromagnetic Compatibility (EMC)	En 50081-2, En 50082-2
Galvanic isolation	3.75 KV. between input and output
Operating Temperature	-40 to 85 ° C
Humidity	0 to 90% RH
Dimension	75mm(W)x87mm(H)x18.5mm(D)

Table 1 Input Signal

Input signal	Maximum Range	Accuracy
Thermocouple J	-50 to 1000 ° C (-58 to 1832 ° F )	± 1 ° C
Thermocouple K	-50 to 1370 ° C (-58 to 2498 ° F )	± 1 ° C
Thermocouple T	-270 to 400 ° C (-454 to 752 ° F )	± 1 ° C
Thermocouple E	-50 to 700°C (-58 to 1292°F)	± 1 ° C
Thermocouple B	0 to 1750 ° C (32 to 3182 ° F )	± 2 ° C (Note1)
Thermocouple R	-50 to 1750 ° C (-58 to 3182 ° F )	± 2 ° C
Thermocouple S	-50 to 1750 ° C (-58 to 3182 ° F )	± 2 ° C
Thermocouple N	-50 to 1300 ° C (-58 to 2372 ° F )	± 2 ° C
Thermocouple C	-50 to 1800 ° C (-58 to 3272 ° F )	± 2 ° C
Pt100	-200 to 600 ° C (-328 to 1112 ° F )	± 0.2 ° C
mV	-60mVto 60mV	± 0.01m V
Voltage (Note2)	-10 to 10Vdc	± 1m V
Current (Note2)	0 to 24mAdc	± 10μA

Note 1 : Accuracy is not guaranteed between 0 and 400°C (0 and 752°F) for type B.

Note 2 : The internal DIP switch should be set.

Dimension

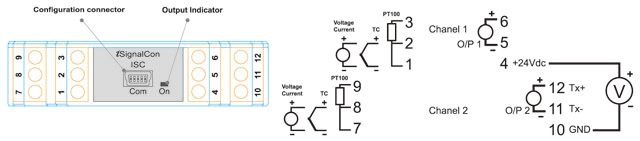

Wiring Diagram

Block Diagram

Download


Manual	ISW_20121129A	Data sheet

Accessories


EzPro Handheld Programmer	URC-1020 Interface Cable
