  • FSTS B Type Temperature Sensor
  • FSTS B Type Temperature Sensor
Heaters & Coolers » Heaters
•Suitable for the abnormal temperature detection on the pipe-shape objects in power plants, cogeneration plants, chemical plants, and semiconductor manufacturing plants
•Applicable Temperature Range: -30°C~250°C
•Accuracy: DINIEC751 class A or B
•Material is UL certified and complies with UL94HB rating
•Superconductive temperature sensing, stable and fast response speed
•Simple installation and resistance against severe environment and chemicals

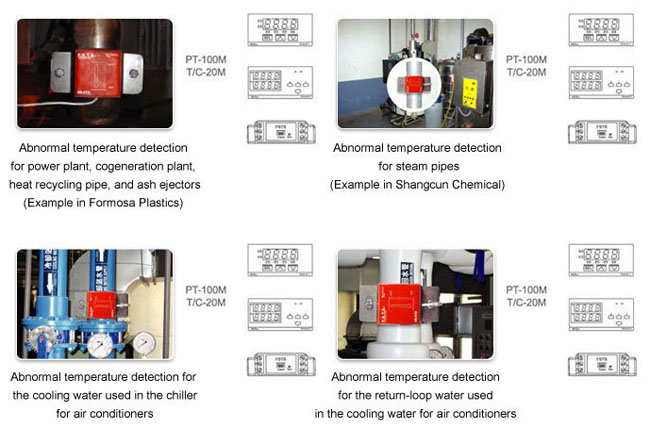

•Application Example: Chemical Plant、Power Plant、Cogeneration Plant、Pipe-shape Equipment、Surface Temperature Sensing
Specification

Type
 Specifications Note
Dimensions
1"~5"圓柱體 SUS304
Can be customized for special requirements
Temperature Sensing Body
PT100Ω K、J A or B class
Can be customized for special requirements
Response Speed
200°C / 2S
DINIEC751
Thermal Conductivity
>1.5W / mK
ASTM D624
Temperature Sensing Range
-30~250°C

Safety Certification (PAD)
UL94HB
E54153
Corrosion Resistance
汽油、機油、丙酮、清潔液、酸鹼
SPLASH TESTING
Water Proof Rating
IP68
CNS14165
Installation Type
Ω型白鐵固定座1"~5"

Conducting Wire
PVC (100°C內) Silicone (150°C內) Teflon (180°C內)
擇一
Connector
公母圓柱體17Φx80 (mm) IP68
防水接盒 82x50x40 (mm) IP66
Optional Accessories

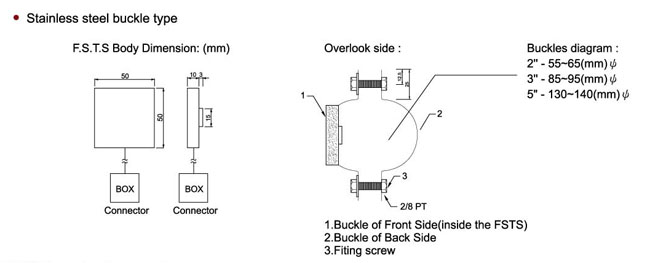

Dimension

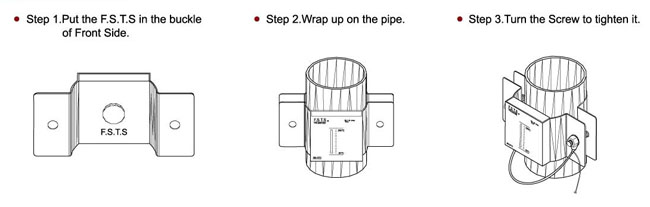

Installing




Precautions

1. Please do not use this product on equipment with a temperature over 250°C.
2. While installing the product, please fasten the wire mounting ring and mounting rack (reinforce the tensile strength).
3. The product is supplied with a one-year warranty started from delivery date (excluding force majeure).

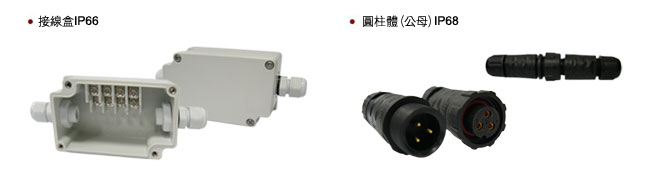

Connector

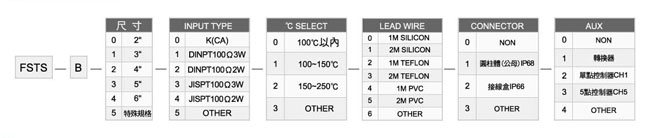

Order



Example
